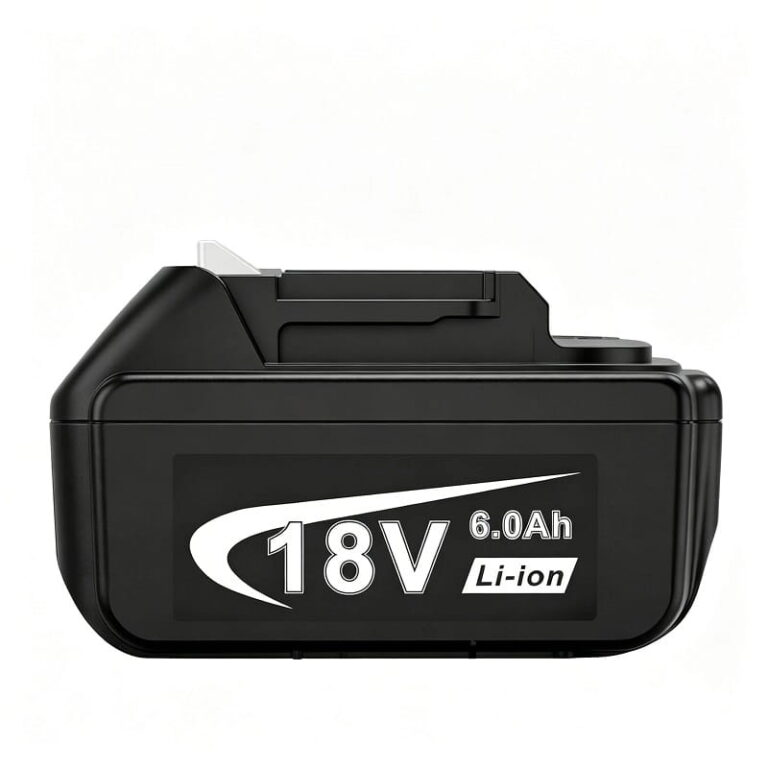

BL1860 18V 6.0Ah Replacement Battery for Makita Tools
This BL1860 replacement battery pack is built on the standard Makita-compatible form factor for a precise fit in host tools and chargers. It uses 18650 cells in a 5S2P configuration to provide a real rated capacity of 6.0Ah at a nominal 18V. The onboard BMS uses model-specific firmware for state-of-charge reporting, authentication, and safety lockouts, with the handshake validated on 100% of units at end-of-line.
Designed for OEM customers, hardware distributors, rental fleets, and private-label brands, it is supplied in retail-ready packaging with UN38.3, IEC 62133, MSDS, and CE Declaration of Conformity documentation.
This is a drop-in replacement battery pack for the BL1860. The BL1860 is built on a standard form factor that has been shown to work well. It uses 18650 cells in a 5S2P configuration to deliver 6.0Ah of true capacity. This is confirmed by the BMS handshake feature and works with Makita chargers.
The BL1860 is made by Dongguan Ruineng New Energy (Nuranu), a high-tech custom battery factory since 2012. It is made on a fully automated assembly line where each battery is tested at the end of the line. It is designed for original equipment manufacturers (OEM), hardware distributors, and private-label brands that need the same fit and performance as OEM products at factory-direct prices.
Compatible Host Tools
- BL1860
- Compatible Makita platform tools
Target Applications
- Industrial Tool Fleets: Sustains peak current for professional Makita cordless tools under continuous-duty jobsite use, delivering the full 6.0Ah rated capacity.
- Rental & Service Fleets: OEM-matched latch and precise form factor make this an ideal fleet-replacement or private-label pack with identical fit and charger behaviour.
- Distributor Stock Programs: Carton-ready packaging and full UN38.3 / IEC 62133 documentation make this SKU ready for wholesale resale and customs clearance worldwide.
Core Technical Advantages
1. OEM-Matched Fit
Precision form factor delivering exact latch geometry, rail fit, and charger seating — the pack drops into host tools and chargers exactly like the original.
2. 18650 5S2P Architecture
A 5S2P cell string delivers the continuous and pulse current Makita brushless motors demand, holding a stable 18V rail without the voltage sag that degrades tool performance under load.
3. Verified BMS Handshake
The onboard BMS is flashed with model-specific firmware so state-of-charge reporting, authentication, and safety lockouts behave identically to a genuine Makita pack — validated on 100% of units at end-of-line.

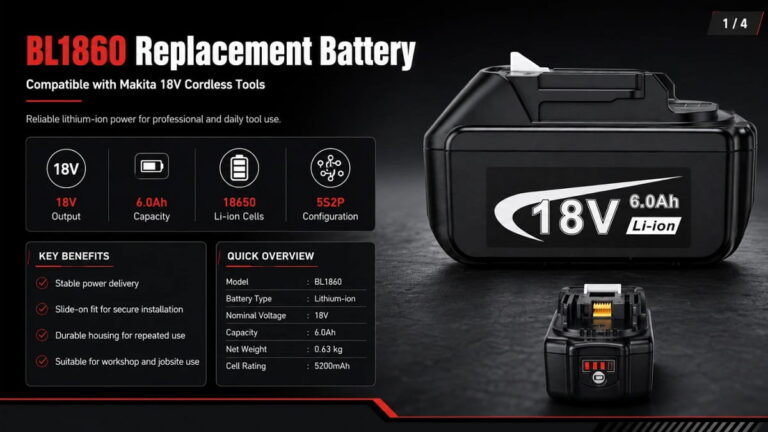

Technical Specifications
| Feature | Specification |
|---|---|
| Replacement Model | BL1860 |
| Compatible Brand | Makita (牧田) |
| Nominal Voltage | 18V |
| Rated Capacity (real) | 6.0Ah |
| Cell Type | 18650 · 5200mAh |
| Configuration | 5S2P |
| Shell Color | Black |
| Proprietary Mold | No (standard form factor) |
| Net Weight | 0.63 kg |
| Battery Dimensions | Confirmed at order |
| Inner Box | Confirmed at order |
| Master Carton | 485*320*230mm |
| Qty per Carton | 20 pcs |
| Carton Net / Gross | 12.6 kg / 13.6 kg |
Packaging & Wholesale Logistics
The BL1860 is shipped in a box ready for retail, designed for distributors to resell and for international shipping. Each master carton holds 20 units, and the carton dimensions are 485*320*230mm, with a gross weight of 13.6 kg. Every batch ships with UN38.3 transport test report, IEC 62133 safety certificate, MSDS, and CE Declaration of Conformity so you can get through customs easily in the EU, US, UK, AU, and JP markets.
| Item | Details |
|---|---|
| MOQ | 100 units (catalog) · 500 units (private label) |
| Lead Time | 25–35 days standard · 18–22 days expedited |
| Payment | 30% T/T deposit + 70% against B/L |
| Warranty | 12 months |
Product Video
Frequently Asked by Distributors:
What is the MOQ for the BL1860 replacement battery?
The standard MOQ is 100 units for the BL1860. You can get paid samples of 1–10 units to check the BMS-handshake before placing an order. Private-label or custom-spec runs start at 500 units.
Is the BL1860 drop-in compatible with original Makita chargers?
Yes. The BL1860 BMS is updated with special software that makes it work right with real Makita chargers. It reports the battery’s charge, checks that it’s real Makita, and prevents anything dangerous. It does all this just like the original equipment manufacturer (OEM) battery pack. Handshake is validated on 100% of units at the end of the line.
Does the BL1860 use a proprietary mold?
This SKU uses a proven standard form factor (not an in-house mold). It is designed to fit and lock properly with the original equipment manufacturer (OEM) latch geometry.
What cells and configuration does the BL1860 use?
The BL1860 uses high-quality 18650 cells (5200 mAh each) arranged in a 5S2P configuration, providing a nominal 18V and a true rated capacity of 6.0Ah. Before assembly, cells are matched based on their capacity (±20 mAh) and internal resistance (±5 mΩ). You can specify your preferred cell brand (Samsung, LG, Panasonic, or BAK) when you place your order.
How is the BL1860 packed for shipping?
The BL1860 ships 20 pieces per master carton (13.6 kg gross), and the carton measures 485*320*230 mm. Every batch of products is shipped with the following documents:
– UN38.3 test report
– IEC 62133 certificate
– MSDS
– CE Declaration of Conformity
These documents are needed to clear customs worldwide.
